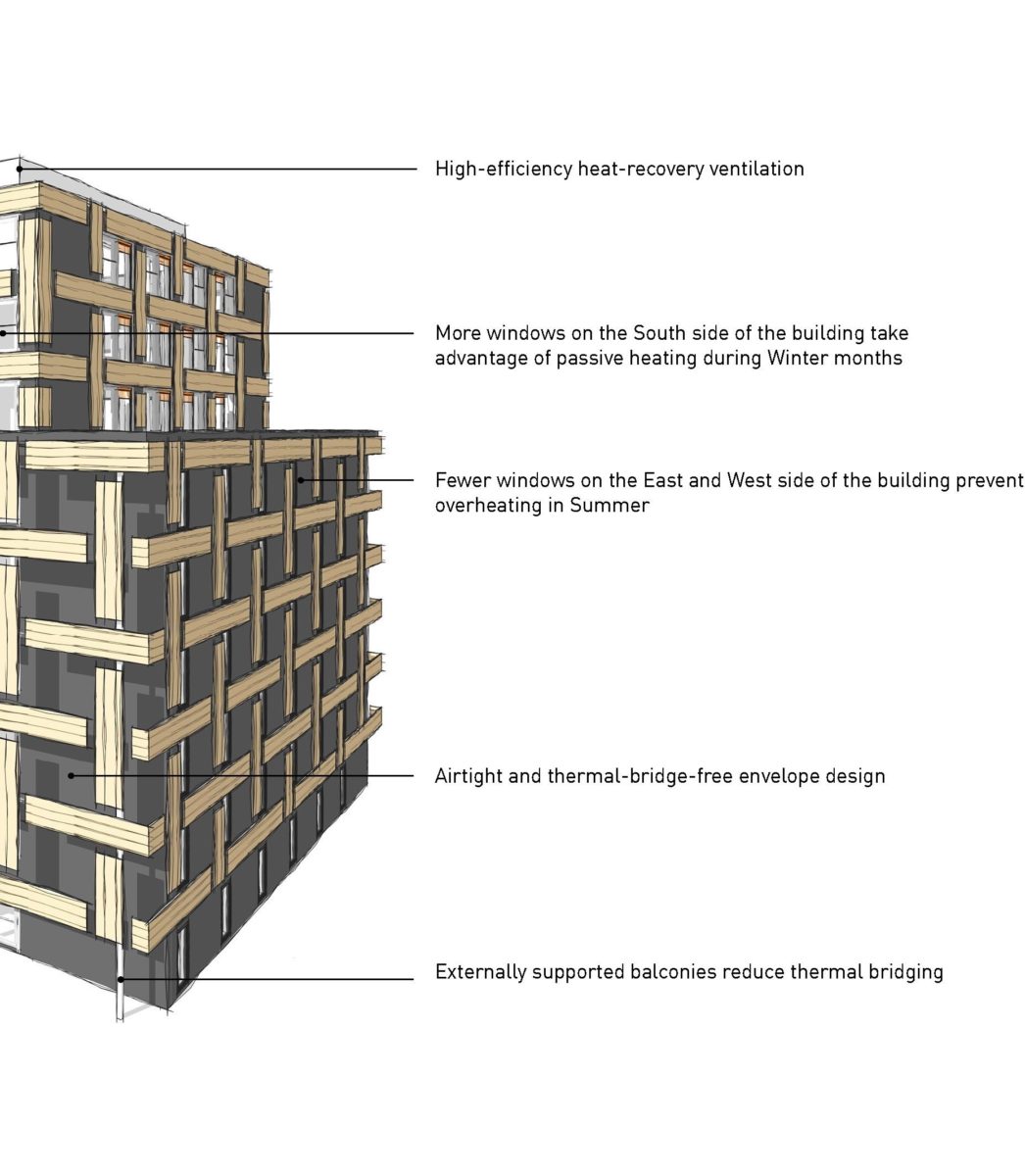

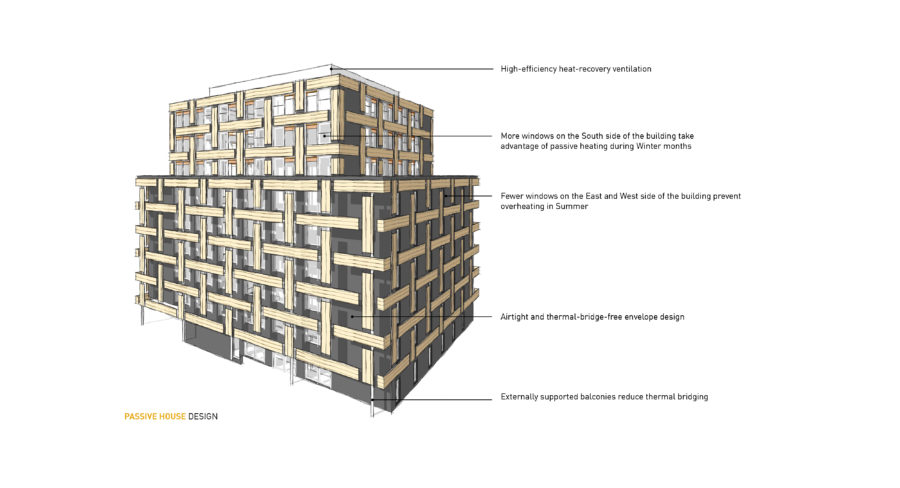

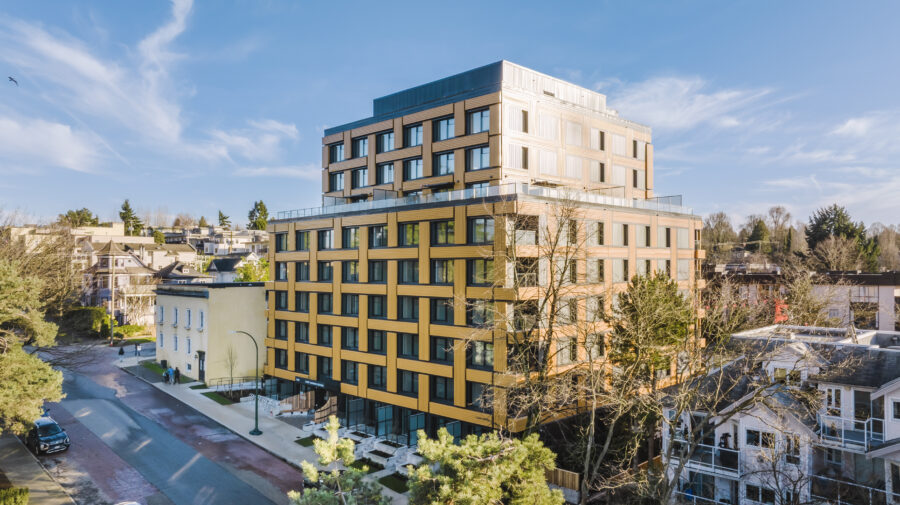

This 9-storey mass timber social housing project for First Nations residents at 1766 Frances Street in Vancouver, BC will aim to achieve Passive House designation in alignment with Indigenous ideologies of respectfully using natural resources.
The 81-unit building will incorporate prefabricated cross-laminated timber floor and Intelligent City’s mass timber envelope panels, with a concrete core and parkade. The 96 ft tall wood structure is expected to be constructed in record time as the panels will be produced off-site and fit together relatively seamlessly. This innovative approach will reduce the project’s environmental footprint and community impact during construction.

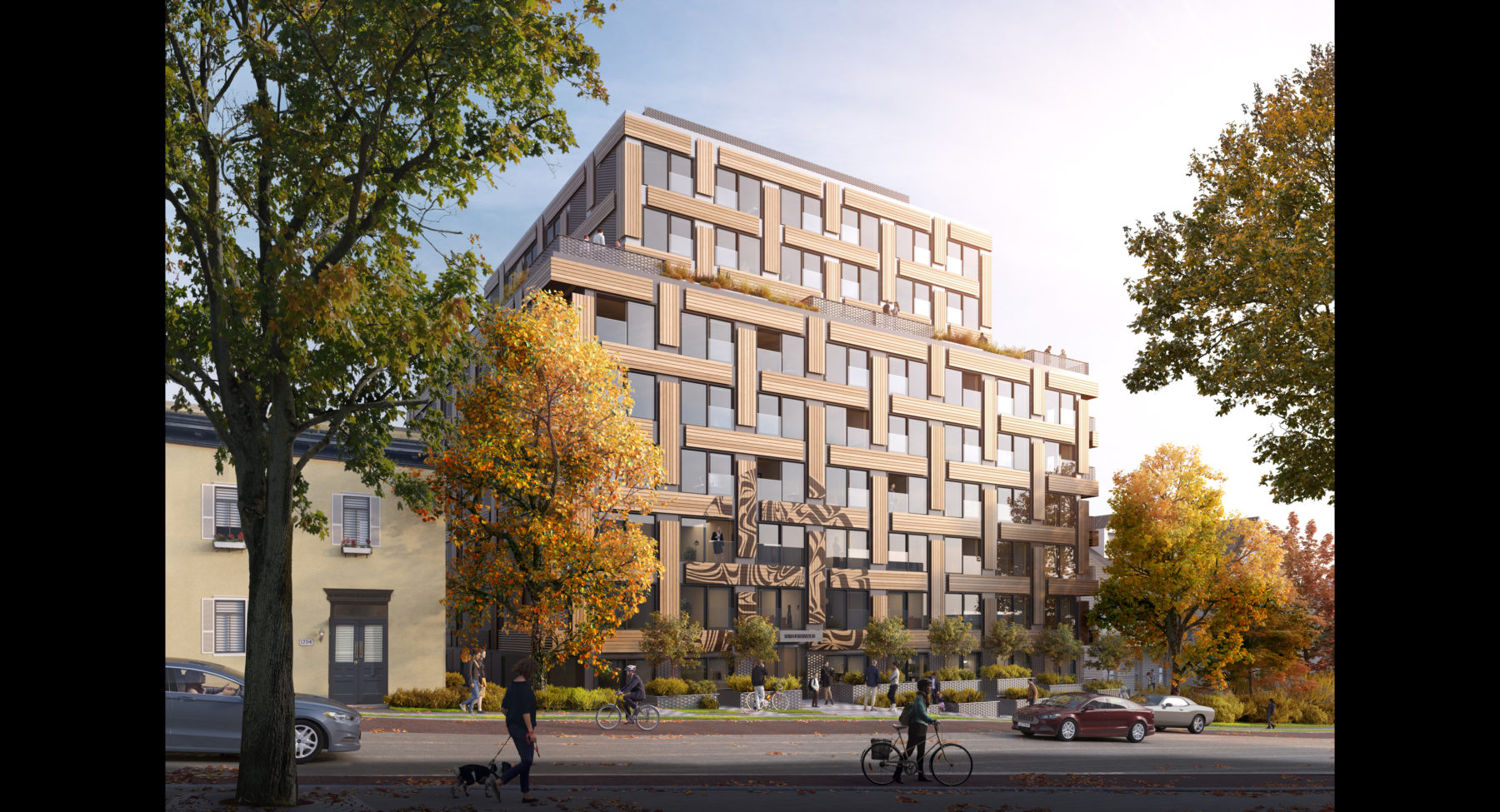

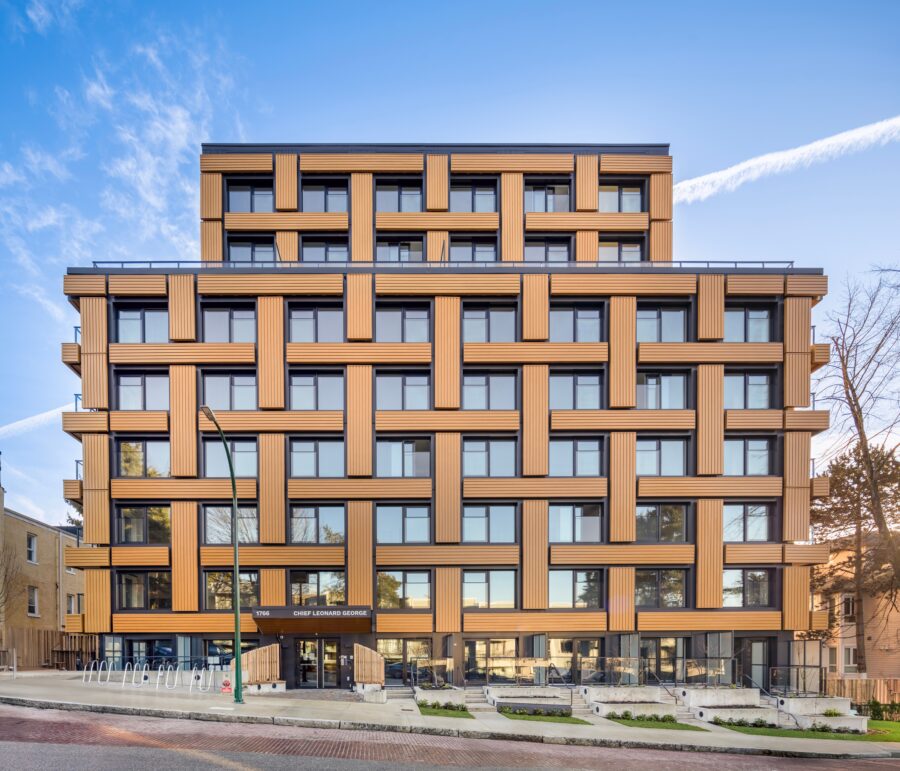

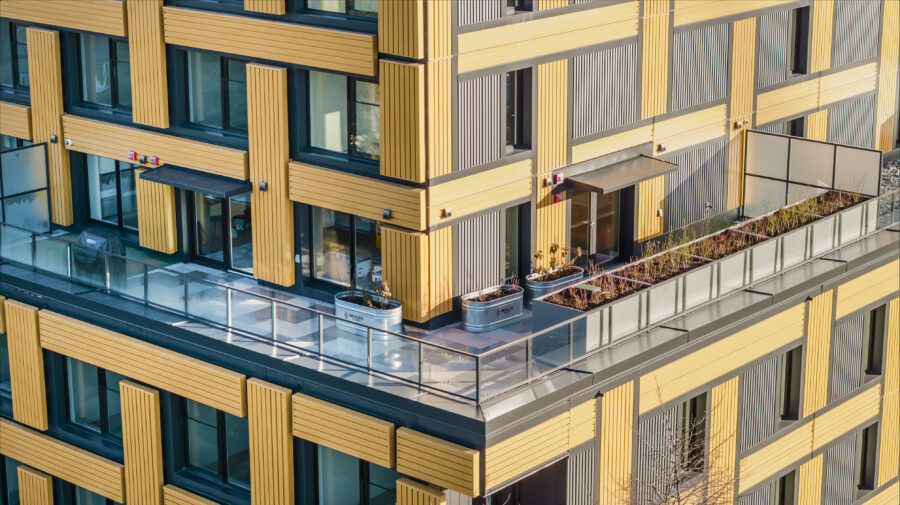

The façade is envisioned as a woven cedar basket that will incorporate Indigenous artwork. In addition to the basket-weave detail, there will be a number of commissioned Indigenous artworks in and outside the building to provide a sense of belonging and to honour and celebrate Indigenous culture.
Renders and video courtesy GBL Architects

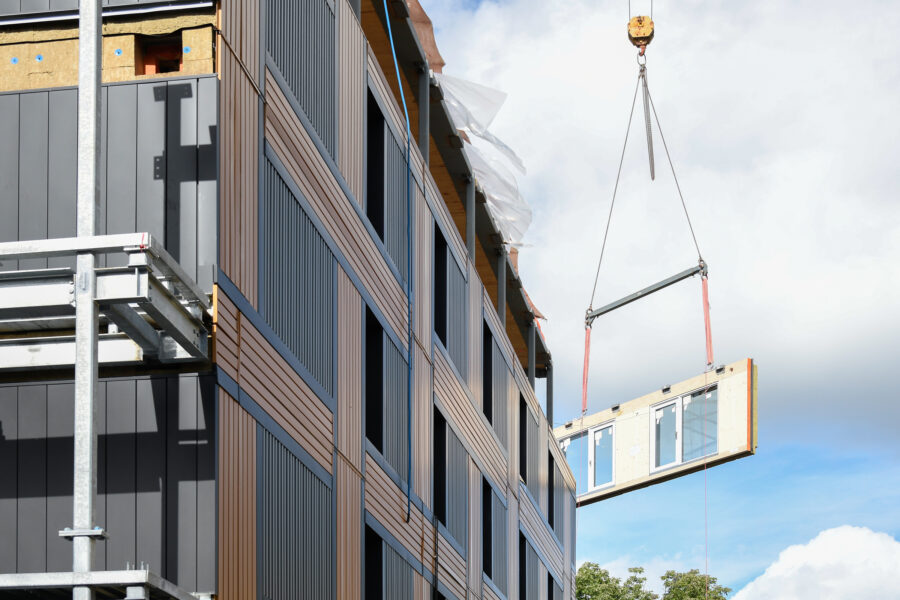

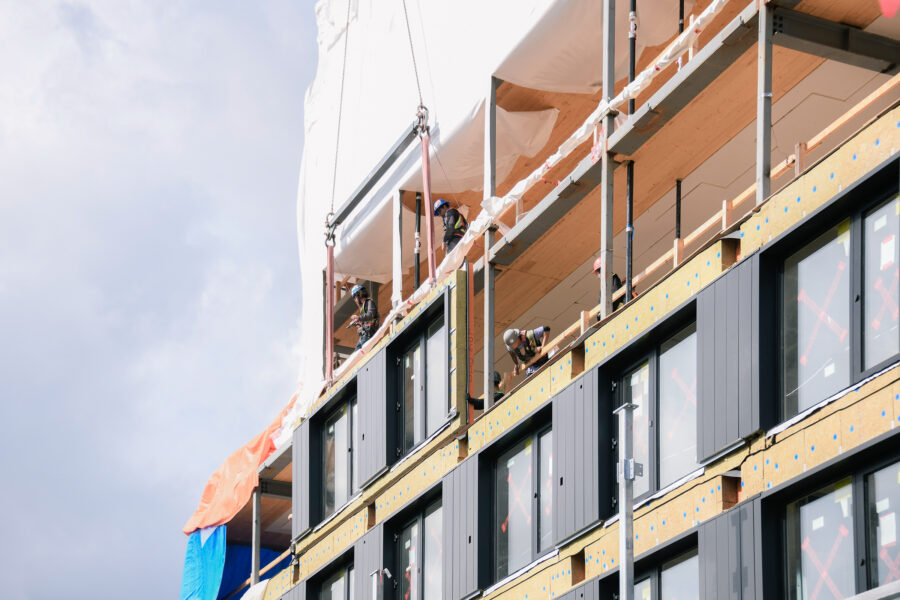

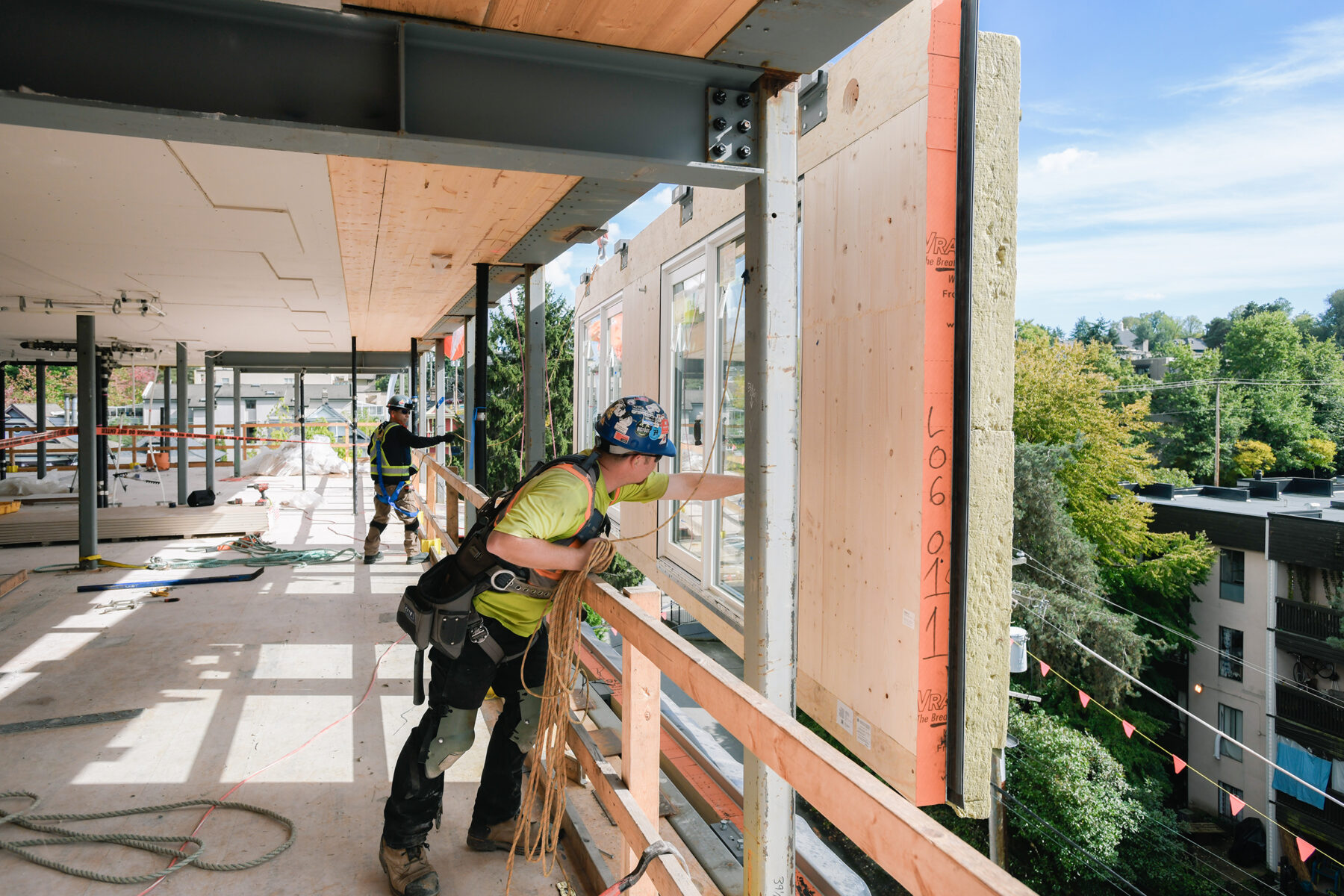

Facade panel install images courtesy of Intelligent City

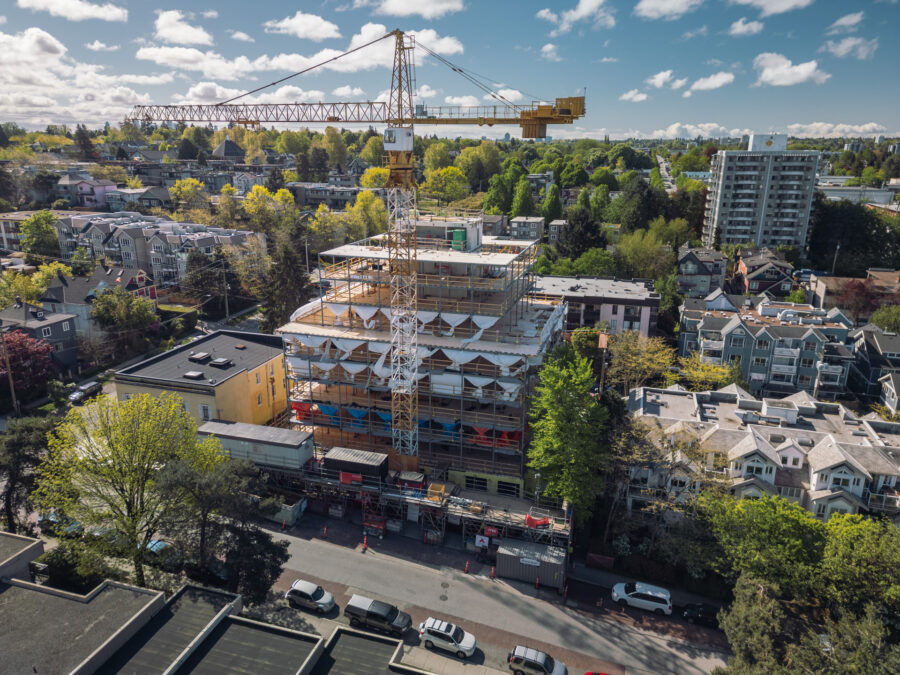

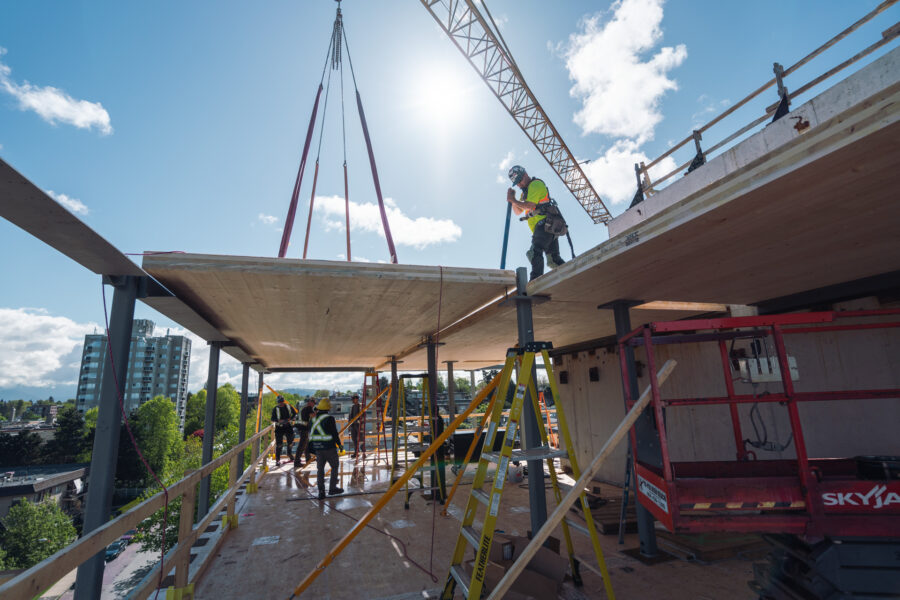

Mass timber construction images courtesy of Seagate Mass Timber
